自動焊接設備已廣泛應用在塑料、汽車制造業、金屬加工、五金家電、鋼構、壓力容器、機械加工制造、造 船、航天等領域。應用自動焊機后，大大提高了焊接件的外觀和內在質量，自動焊接設備并保證了質量的穩定性和降低勞動強度，改善了勞動環境,降低人工焊接技能要求及生產成本,提高生產效率。

Automatic welding equipment has been widely used in plastic, automotive manufacturing, metal processing, hardware and electrical appliances, steel structures, pressure vessels, mechanical processing and manufacturing, shipbuilding, aerospace and other fields. After the application of automatic welding machines, the appearance and internal quality of welded parts have been greatly improved. The automatic welding equipment ensures stability of quality and reduces labor intensity, improves the labor environment, reduces manual welding skill requirements and production costs, and improves production efficiency.

山東自動焊接設備的特點：

The characteristics of Shandong automatic welding equipment:

1、焊接電源。

1. Welding power supply.

其輸出功率和焊接特性應與擬用的焊接工藝方法相匹配，并裝有與主控制器相連接的接口.

Its output power and welding characteristics should match the proposed welding process method and be equipped with an interface connected to the main controller

2、送絲機及其控制與調速系統。

2. Wire feeder and its control and speed regulation system.

對于送絲速度控制精度要求較高送絲機，其控制電路應加測速反饋

For wire feeding machines with high precision requirements for wire feeding speed control, their control circuit should be equipped with speed feedback

3、焊接機頭用其移動機構。

3. The welding machine head uses its moving mechanism.

其由焊接機頭，焊接機頭支承架，懸掛式拖板等組成，地于精密型焊頭機構，其驅動系統應采用裝有編碼器的伺服電動機

It consists of a welding head, a welding head support frame, a suspended carriage, etc. It is located in a precision welding head mechanism, and its driving system should use a servo motor equipped with an encoder

4、焊件移動或山東變位機構。

4. Weldment movement or Shandong displacement mechanism.

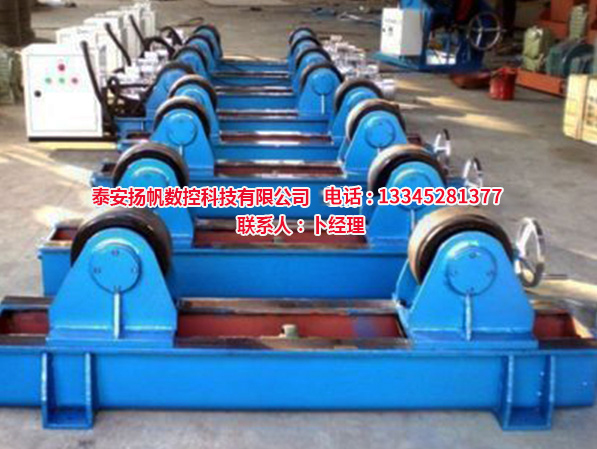

如焊接山東滾輪架，頭尾架翻轉機，回轉平臺和變位機等，精密型的移動變位機構應配伺服電動機驅動

For example, welding Shandong roller frames, head and tail frame flippers, rotary platforms, and displacement machines, precision mobile displacement mechanisms should be equipped with servo motor drives

5、焊件夾緊機構

5. Weldment clamping mechanism

6、主控制器。

6. Main controller.

亦稱系統控制器，主要用于各組成部分的聯動控制，焊接程序的控制，主要焊接參數的設定，調整和顯示。必要時可擴展故障診斷和人機對話等控制功能。

Also known as a system controller, it is mainly used for the linkage control of various components, the control of welding programs, and the setting, adjustment, and display of main welding parameters. If necessary, control functions such as fault diagnosis and human-machine dialogue can be expanded.

7、計算機軟件。

7. Computer software.

焊接設備中常用的計算機軟件有：編程軟件，功能軟件，工藝方法軟件和系統等。

The commonly used computer software in welding equipment includes programming software, functional software, process method software, and systems.

8、焊頭導向或跟蹤機構。

8. Welding head guidance or tracking mechanism.

弧壓自動控制器，焊槍橫擺器和監控系統。

Arc pressure automatic controller, welding gun sway device, and monitoring system.

9、輔助裝置。

9. Auxiliary devices.

如自動焊機的送絲系統，循環水冷系統、焊劑回收輸送裝置、焊絲支架、電纜軟管及拖。

For example, the wire feeding system of an automatic welding machine, circulating water cooling system, flux recycling and conveying device, wire support, cable hose, and trailer.
