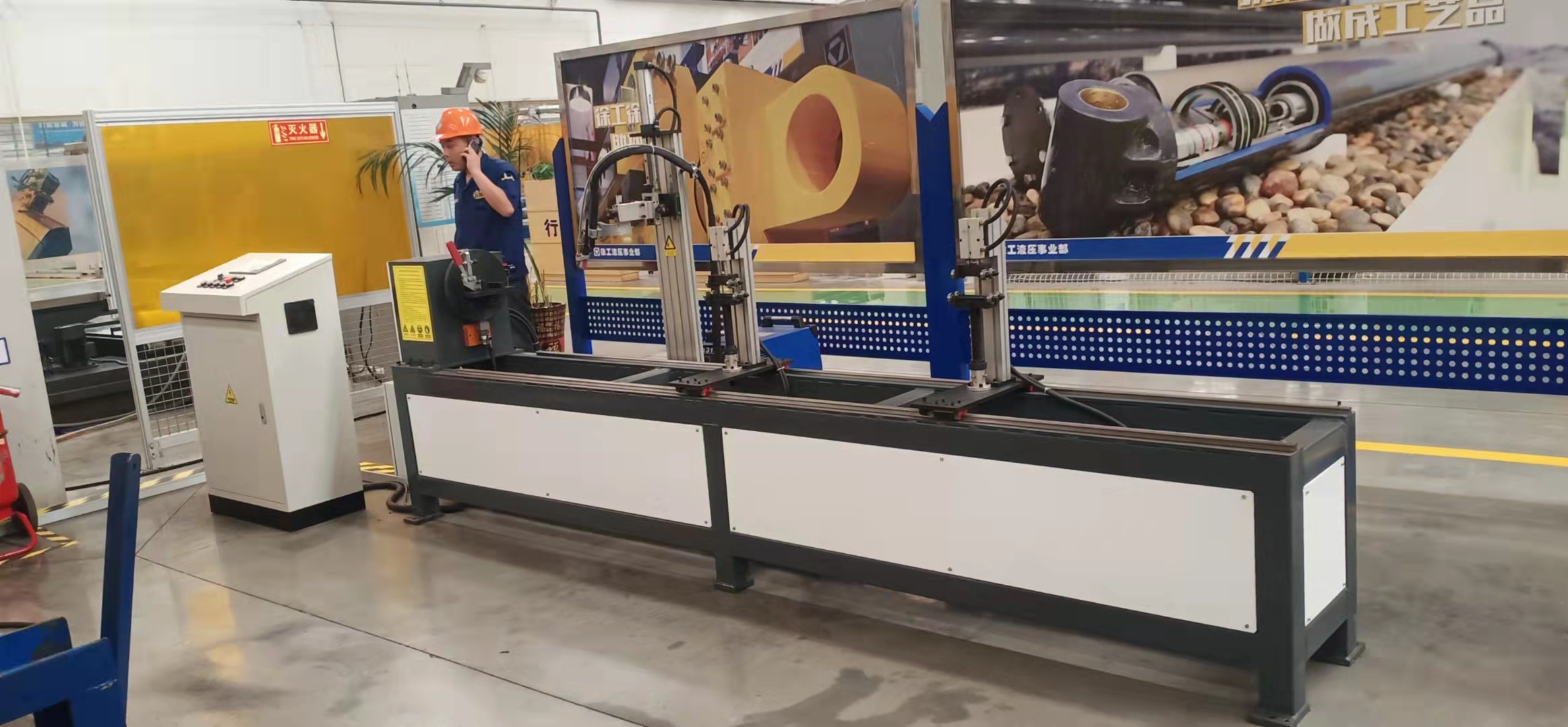

焊接專機設備保養如同設備體檢，其主要目的是：通過設備保養發現設備存在的問題，對發現的問題進行處理或提出處理建議。盡量避免設備問題的惡化，減少設備損失，減少偶發山東焊接專機停機事件，更好的保障設備的有效運行。

The maintenance of the special welding machine is like the physical examination of the equipment. Its main purpose is to find out the problems of the equipment through the maintenance of the equipment, and deal with the problems found or put forward treatment suggestions. Try to avoid the deterioration of equipment problems, reduce equipment losses, reduce the occasional shutdown of Shandong welding special aircraft, and better ensure the effective operation of equipment.

冷卻系統的清理

Cleaning of cooling system

由于切屑長時間在冷卻箱內不斷沉積，切屑過多后影響冷卻箱有效容積，易造成濾網堵塞，影響冷卻泵正常抽取冷卻液。

Due to the continuous deposition of chips in the cooling box for a long time, the effective volume of the cooling box will be affected after too much chips, which is easy to block the filter screen and affect the normal extraction of coolant by the cooling pump.

冷卻系統的清理可避免或減少加工過程中出現的冷卻流量不足或冷卻停止等現象。

The cleaning of cooling system can avoid or reduce the phenomenon of insufficient cooling flow or cooling stop during processing.

冷卻液自身是有使用壽命的，如乳化液長時間使用不清理不更換，變質后的乳化液污染加工環境，防銹防腐性能缺失后易損壞設備機械部件。

The coolant itself has a service life. If the emulsion is used for a long time without cleaning and replacement, the deteriorated emulsion will pollute the processing environment, and the mechanical parts of the equipment will be easily damaged after the lack of anti-rust and anti-corrosion performance.

液壓系統的清理

Cleaning of hydraulic system

液壓系統中的泵頭、電磁閥、液壓缸等部件在運行過程中會產生磨損，磨損產生的微小金屬粉末與液壓油混合在一起，使液壓油潔凈度逐漸下降，污染的液壓油會加劇液壓系統的磨損。

The pump head, solenoid valve, hydraulic cylinder and other components in the hydraulic system will wear during operation. The tiny metal powder produced by wear will be mixed with the hydraulic oil, which will gradually reduce the cleanliness of the hydraulic oil. The contaminated hydraulic oil will aggravate the wear of the hydraulic system.

液壓系統的清理，液壓油的更換，可提高液壓系統的使用壽命，保證液壓系統的運行穩定。

The cleaning of the hydraulic system and the replacement of the hydraulic oil can improve the service life of the hydraulic system and ensure the stable operation of the hydraulic system.

氣動系統的清理

Cleaning of pneumatic system

氣動系統過濾器的檢查清理，是保證設備氣源質量的重要步驟。

The inspection and cleaning of the pneumatic system filter is an important step to ensure the quality of the equipment air source.

針對一些配有主軸軸承氣霧潤滑，主軸軸承吹氣，光柵尺吹氣，對刀儀吹氣等場合，對氣源質量要求非常嚴格，若機床過濾系統損壞或存在隱患，易造成較大的經濟損失。

For some occasions equipped with spindle bearing air mist lubrication, spindle bearing air blowing, grating ruler air blowing, tool setting instrument air blowing, etc., the air source quality requirements are very strict. If the filter system of the machine tool is damaged or has hidden dangers, it is easy to cause large economic losses.

散熱系統風扇

Cooling system fan

散熱系統風扇及相關過濾網長時間運行，易造成過多油泥灰塵堆積，過濾堵塞影響空氣流通，風扇油泥過多影響風扇運轉。

The fan of the cooling system and the relevant filter screen operate for a long time, which is easy to cause excessive sludge and dust accumulation, filter blockage affects the air circulation, and excessive fan sludge affects the fan operation.

散熱系統運行不良或故障易造成設備過熱，引起相關部件損壞。

Poor operation or failure of the cooling system may easily cause overheating of the equipment and damage to relevant components.

此外過多污物堆積在導軌絲杠周邊，易造成導軌絲杠磨損。過多污物堆積導軌護板下方，易堵塞冷卻液回流孔、回流槽，阻塞后過高液位造成絲杠、軸承、電機浸泡，造成相關部件損壞。您有需求可以隨時咨詢聯系我們http://！

In addition, too much dirt is accumulated around the guide screw, which is easy to cause wear of the guide screw. Too much dirt is accumulated under the guide rail guard plate, which is easy to block the coolant return hole and return groove. After blocking, the high liquid level will cause the lead screw, bearing and motor to soak, causing damage to relevant parts. You can contact us at any time if you need http:// ！
